Description / technical features
|

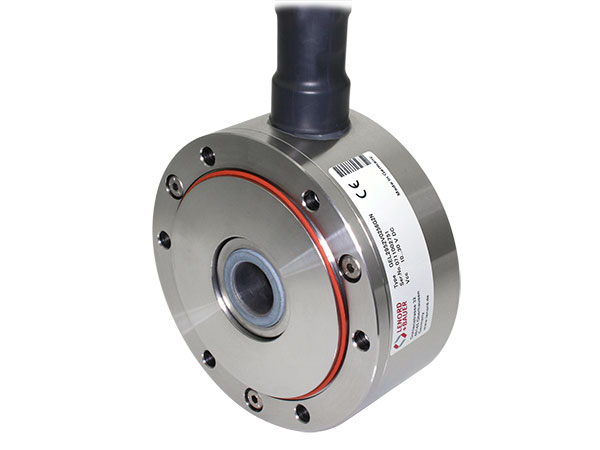

Extreme duty encoder, stainless steel housing, fully potted sensor module offers excellent rugged environment protection. Available with solid shaft or integrated coupling. | |||
|
Housing diameter |
115 mm |
|||
|
Hollow shaft diameter |
20 mm |
|||
|
Shaft diameter |
16 mm |
|||
|
Max revolutions |
6,000 min -1 |
|||
|
Temperature range |
-40 °C to +120 °C |
|||
|
Protection class |
IP 67 | |||
|
Output signals |
Sine-wave differential signal 1 V PP or square-wave signal |
|||
