Description/ technical features

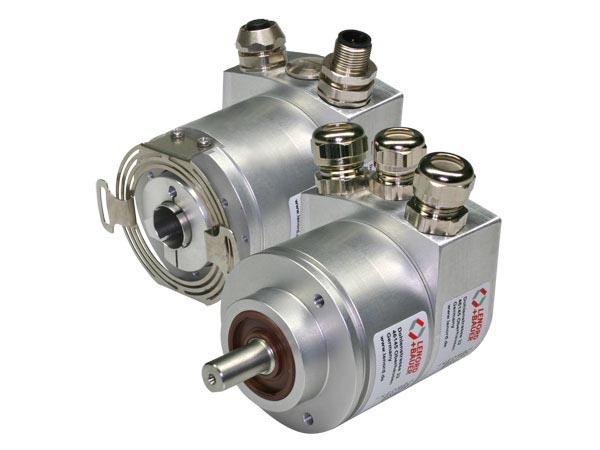

Magnetic absolute rotary encoder with vernier code disc and magnetic gear

Total resolution

Singleturn: 16 Bit
Multiturn: 12 Bit

0,1 °

Flangetyp

Clamping-, Synchroflange, Semi hollow shaft

Shaft diameter

6, 10, 12 mm full shaft
15 mm semi hollow shaft

Housing material

Aluminium anodised
Stainless steel 1.4104

Dew point proof

yes

Temperature range

-40 °C to +105 °C

Protection class

IP 64
IP 67 with shaft sealing

Supply voltage

10 to 30 V DC
5 V DC

Interface

EtherCAT, SSI, PROFIBUS DP, CANopen, Analogue 4 to 20 mA
