Description/ technical features

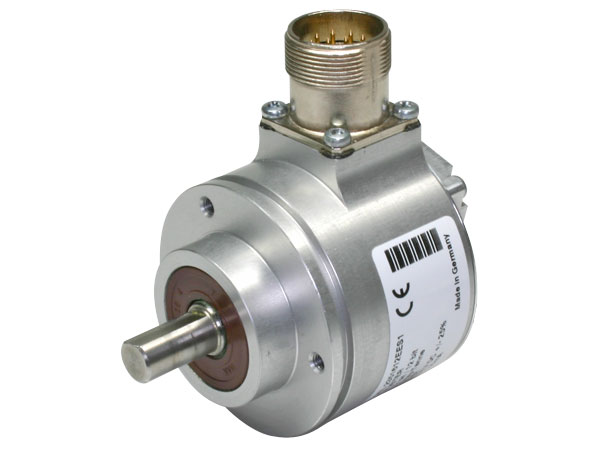

Absolute rotary encoder with integrated digital interface battery counter

Interface

SSI, CANopen

Flange

Clamp flange

Housing

58 mm, Aluminium anodized or stainless steel

Shaft diameter

10 x 20 mm

Shaft load

1,000 min ^-1 = 80 N / 100 N

Operating temperature range

6,000 min ^-1

Temperature range

-40 °C to +85 °C

Protection class

IP 67, IP 69K

Supply voltage

10 to 30 V

12 Bit (8192 steps per revolution)

12 Bit (4096 revolutions)

Resolver signal
