Description/ technical features |

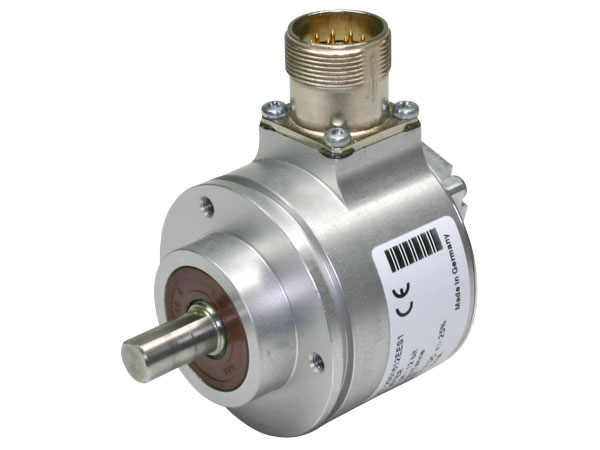

Absolute rotary encoder with integrated digital interface gearbox multiturn |
|
Interface |
SSI, CANopen |
|
Flange |
Clamp flange |
|
Housing |
58 mm, Aluminium anodized or stainless steel |
|
Shaft diameter |
10 x 20 mm |
|
Shaft load |
1,000 min -1 = 100 N / 265 N |
|
Operating temperature range |
6,000 min -1 |
|
Temperature range |
-40 °C to +85 °C |
|
Protection class |
IP 67, IP 69K |
|
Supply voltage |
10 to 30 V |
| Resolution per revolution max. |
12 Bit (8192 steps per revolution) |
| Numbers per revolution max. |
12 Bit (4096 revolutions) |
| Option |
Resolver signal |
